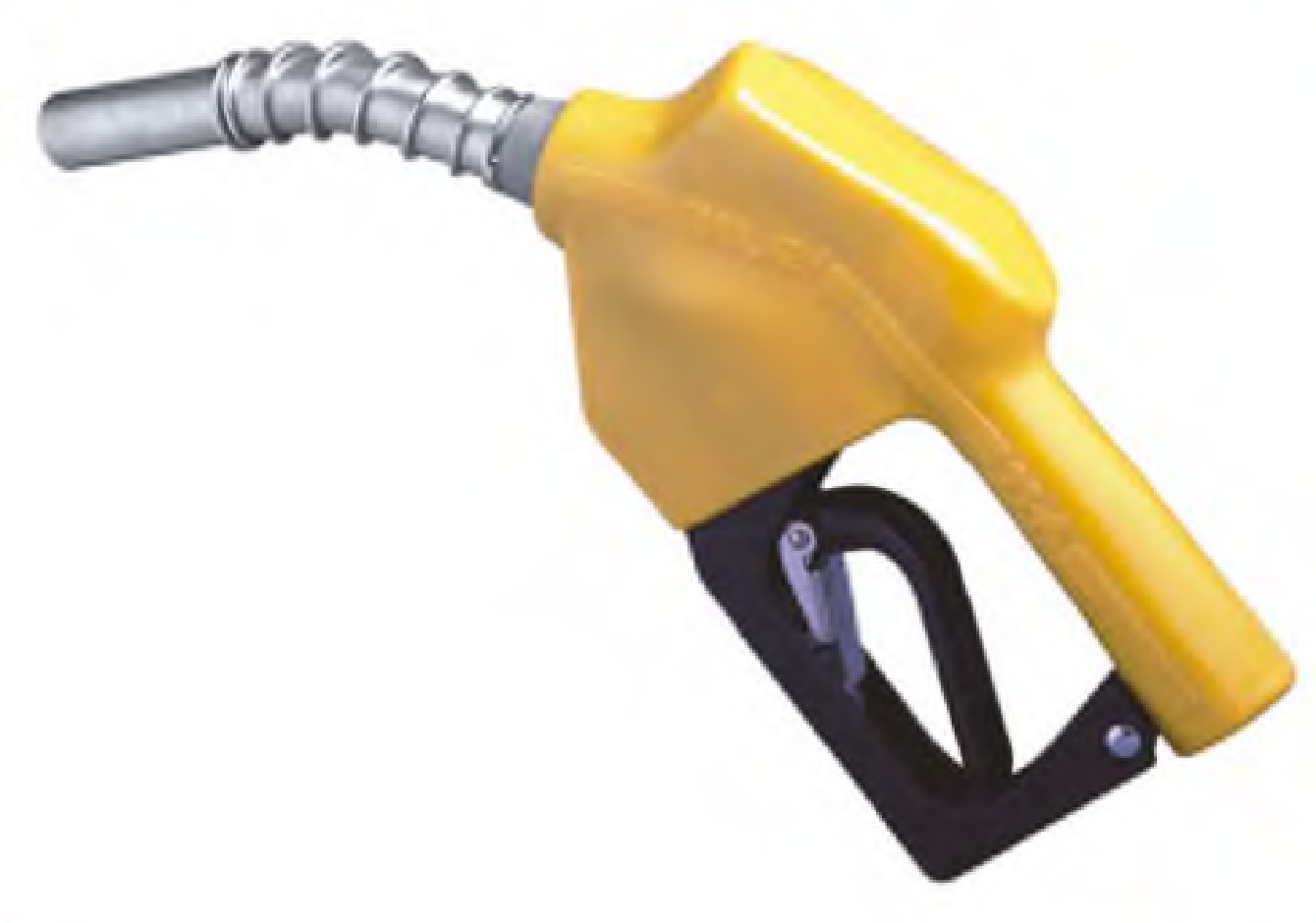

AILE VV-A-801 2” NPT THREAD FOR DIESEL (NO PRESSURE)

Aile A2101-11A series pf automatic nozzles are designed for today’s customers’ demands. Small, trim light weight, easy and convenient to operate, the Aile A2101-11A is a rugged performer that offers long life and reliable service.

MATERIAL
  • Body: Aluminum
  • Seals: Buna-N, Viton
  • Main stem seals: Viton Cased Oil Seal / Graphite with Teflon
  • Main stem: Stainless Steel
FEATURES AND BENEFITS
  • AILE 2101-11A Flow rate: 0-60 L/m (15/16”)
  • AILE A2101-11A Automatic Nozzles-for diesel, kerosene and all kinds of gasoline service.
  • Easily replaced spout-simply removes the screw. Spout kits are available from AILE.
  • Low-profile aluminum body-light weight, easier to handle, provides an attractive, image-enhancing appearance.
  • Vacuum Design: Back-Sealing Design.
  • Selective casting process of body-Sand casting technique or high-pressure casting technique. The high-pressure casting technique can reduce diesel foaming and static electricity.
  • Patent No: ZL98247417.2
  • Hold-open rack is available for full service applications the one hand control means easy setting to flow rate for customer^ convenience.
  • Full hand insulator-protects both nozzle and vehicle, and insulates user’s hands.
  • Available Colors-color chart on inside back cover
  • Selective splash guard.
  • Selective Spout With Flowlock-designed to shut-off automatically when the spout is tipped up, limiting spillage and “ spit ”
  • 100% Factory Tested.

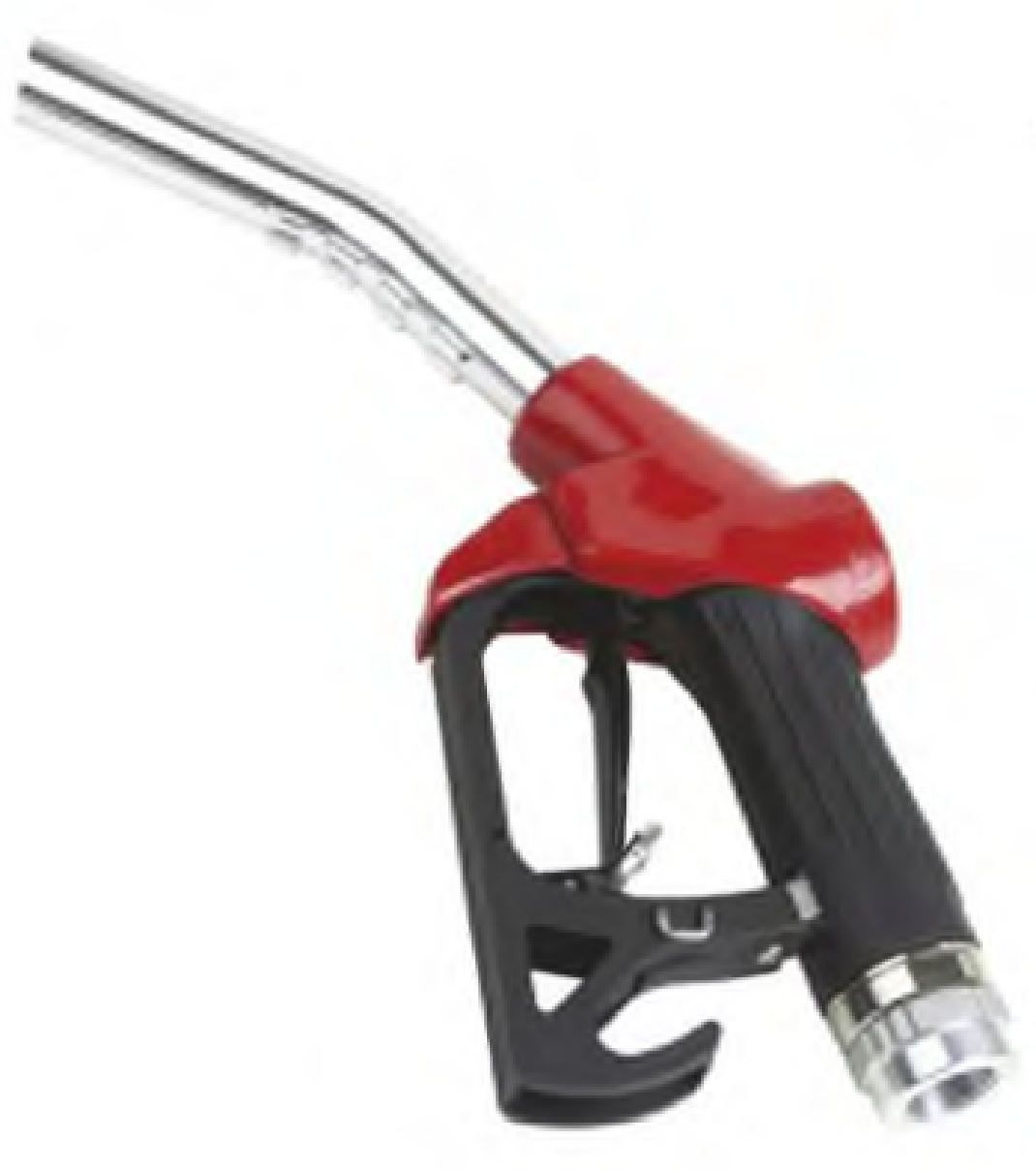

AILE ZYQ 13A 3/4” NPT

Aile ZYQ-13A Automatic nozzles are designed for today’s customers’ ideals. Small, trim, light weight, easy and convenient to use. It is a rugged performer that offers long life and reliable service.

MATERIAL
  • Body: Aluminum
  • Seals: Buna-N, Viton
  • Main stem seals: Viton Cased Oil Seal / Graphite with Teflon
  • Main stem: Stainless Steel
FEATURES AND BENEFITS
  • AILE ZYQ-13A Flow rate: 0-70 L/m (15/16”)
  • Working Pressure: 0.18Mpa
  • Compound Main valve and bleed poppet Tight structure, attractive appearance. Minimum pressure Loss and offer a maximum flow rate
  • Accurate flow control-It allows customers to top off their tank to the exact amount that they want, and it’s easy to stop gasoline flow precisely.
  • Easily replaced 360° rotation swivel-prevents the hose from curling up.
  • Hold-open rack is available for fullservice applications. The one hand control means easy setting to flow rate for customer’s convenience.
  • Spout with gear: Making it to be holding on the spout of tank without hand, improving your efficiency.
  • All nozzles with Flow-lock: designed to shut-off automatically when the spout is tripped up, limiting spillage “ spit”.
  • Hand insulator-protects both nozzle and vehicle, and insulates users’ hands.
  • Available Colors-color chart on inside back cover
  • Selective splash guard.
  • 100% Factory Tested.
