All standard speed variants can be ordered at a high speed model.
P Pump M Meter
| Dimensions | Suction Type | Submersible Type | Products | Nozzles | Displays | ||
|---|---|---|---|---|---|---|---|
| DA28 |
 |
Suction Submersible |
 |
 |
4 | 8 | 2 |
| DA66 |
 |
Suction/Submersible |
 |
 |
3 | 6 | 6 |
| DA26 |
 |
Suction/Submersible |
 |
 |
3 | 6 | 2 |
| DA24 |
 |
Suction/Submersible W:1226 |
 |
 |
2 | 4 | 2 |
| DAF4 |
 |
Suction/Submersible |
 |
2 | 4 | 4 | |
| DAT2 |
 |
Suction/Submersible |
 |
 |
2 | 2 | 2 |
| DA22 |
 |
Suction/Submersible |
 |
 |
2 | 2 | 4 |
| DAD2 |
 |
Suction/Submersible |
 |
 |
1 | 2 | 2 |
| DA11 |
 |
Suction/Submersible |
 |
 |
1 | 1 | 2 |
All standard speed variants can be ordered at a high speed model.
P Pump M Meter
| Dimensions | Suction Type | Submersible Type | Products | Nozzles | Displays | ||
|---|---|---|---|---|---|---|---|
| DAU1 |
 |
Suction/Submersible |
 |
 |
1 | 1 | 2 |
| DAU2 |
 |
Suction/Submersible |
 |
 |
1 | 2 | 4 |

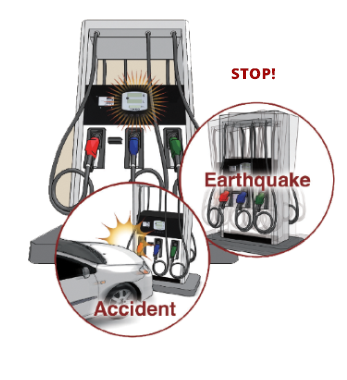

Filling is instantly stopped when the Impact detection
sensor senses acceleration by the accident or earthquake.

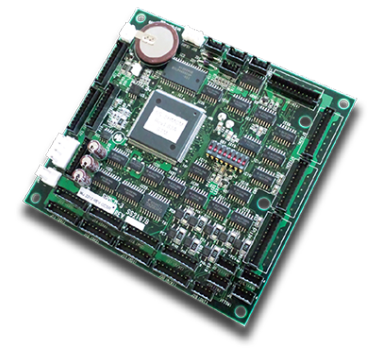

Important management data and operation parameters are
maintained both in RAM and EEPROM in order to protect
those data when the backup battery is run out.
Restoration of data is easy by resuming from EEPROM.

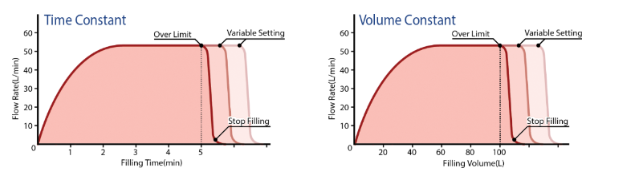

Abnormal filling time and filling volume over the preliminarily
set constant value is detected by the main control unit and
the filling is automatically stopped.

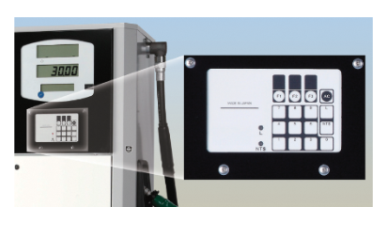

Simple one-touch setting by preset function keys.
One-touch preset value can be variably assigned from remote
control operation.
|
MODEL
|
SUCTION TYPE |
SUBMERSIBLE TYPE |
|
|---|---|---|---|
| Delivery Speed | Standard Capacity | 40L/min | 40L/min |
| High Capacity | 75/min Ultra high capacity DAU1/DAU2 :180/min |
75/min Ultra high capacity DAU/DAU2 :180/min DAV2 :120L/min |
|

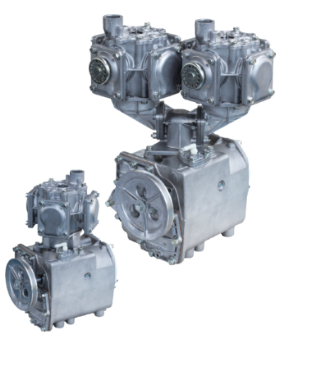

| Flowmeter | Type | 4 piston positive displacement flowmeter | |
| Accuracy | +- 0.25% | ||
| Adjuster | Dial type micro adjuster | ||
| Display | Type | LCD with LED backlight | |
| Money | 7 digits | ||
| Volume | 7 digits | ||
| Unit Price | 5 digits | ||
| PowerFailure | Transaction date in maintained for 15minutes | ||
| Preset Keypad | 10-key Part | Both for volume and money preset | |
| One-touch Key Part | 3 different values/ variable from the remote control | ||
| Display | Small LCD with LED indicator | ||
| Power Source | Depending on local power source | ||
| Operating Conditions | Temperature | +5 to 4 | |
| Relative Humidity | +5% to 95% | ||
| Option | Hose | Length-Please contact us | |
| Nozzle | Vapor recovery | ||
